Optimal discharge device for round flat bottom silos

The Sliding Frame is an ‘original’ discharger design by Saxlund International for flat bottom circular silos. It is designed to function with non-free flowing and difficult materials such as de-watered sludge cakes.

The flat silo floor concept gives many advantages such as the maximum possible sized discharge openings. The Sliding Frame discharger creates ‘mass flow’ within the silo even with these difficult materials. The client can be sure of achieving accurate discharge and metering of the stored material on demand no matter what the application.

Function

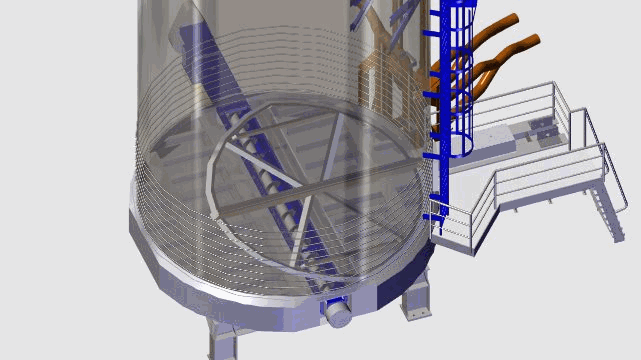

The Sliding Frame is driven by a hydraulic system that makes the frame reciprocate slowly across the silo flat floor. As it does so, it digs the material from storage and at the same time delivers it into a screw or screws situated beneath the silo floor. The screw or screws are thus maintained completely full and are therefore able to meter the material at the desired rate into the process.


Design Possibilities

The original Saxlund International Sliding Frame discharge machine is built in diameters from 2.5m up to 12m and with silo capacities from 5m³ up to 2,500m³. The Sliding Frame can be retro fitted into the client’s existing silo to over-come silo bridging problems. The silo can be constructed from steel concrete or plastic.
