Page 3 - Trailer Docking Station_EN.ppp
P. 3

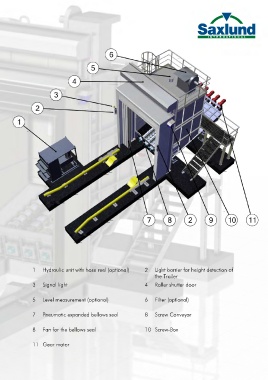

1    Hydraulic unit with hose reel (optional)     2    Light barrier for height detection of
                                                                      the Trailer
               3    Signal light                                 4    Roller shutter door


               5    Level measurement (optional)                 6    Filter (optional)


               7    Pneumatic expanded bellows seal              8    Screw Conveyor


               8    Fan for the bellows seal                     10 Screw-Box


               11 Gear motor
   1   2   3   4
