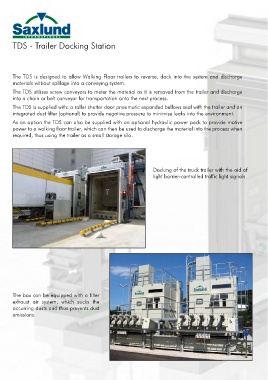

TDS - Trailer Docking Station
The TDS is designed to allow Walking Floor trailers to reverse, dock into the system and discharge
materials without spillage into a conveying system.
The TDS utilises screw conveyors to meter the material as it is removed from the trailer and discharge
into a chain or belt conveyor for transportation onto the next process.
The TDS is supplied with: a roller shutter door pneumatic expanded bellows seal with the trailer and an
integrated dust filter (optional) to provide negative pressure to minimise leaks into the environment.
As an option the TDS can also be supplied with an optional hydraulic power pack to provide motive
power to a walking floor trailer, which can then be used to discharge the material into the process when
required, thus using the trailer as a small storage silo.
Docking of the truck trailer with the aid of
light barrier-controlled traffic light signals
The box can be equipped with a filter
exhaust air system, which sucks the
occurring dusts and thus prevents dust
emissions.
