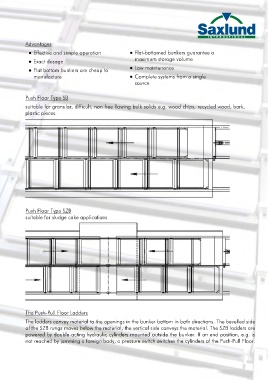

P. 3

Advantages

              ● Effective and simple operation             ● Flat-bottomed bunkers guarantee a
              ● Exact dosage                                 maximum storage volume
              ● Flat bottom bunkers are cheap to           ● Low maintenance
                manufacture                                ● Complete systems from a single
                                                             source


            Push Floor Type SB

            suitable for granular, difficult, non free flowing bulk solids e.g. wood chips, recycled wood, bark,
            plastic pieces.


























            Push Floor Type SZB
            suitable for sludge cake applications

























            The Push-Pull Floor Ladders
            The ladders convey material to the openings in the bunker bottom in both directions. The bevelled side
            of the SZB rungs moves below the material, the vertical side conveys the material. The SZB ladders are
            powered by double-acting hydraulic cylinders mounted outside the bunker. If an end position, e.g. is
            not reached by jamming a foreign body, a pressure switch switches the cylinders of the Push-Pull Floor.
